Doors Non-Fire Rated
Description:

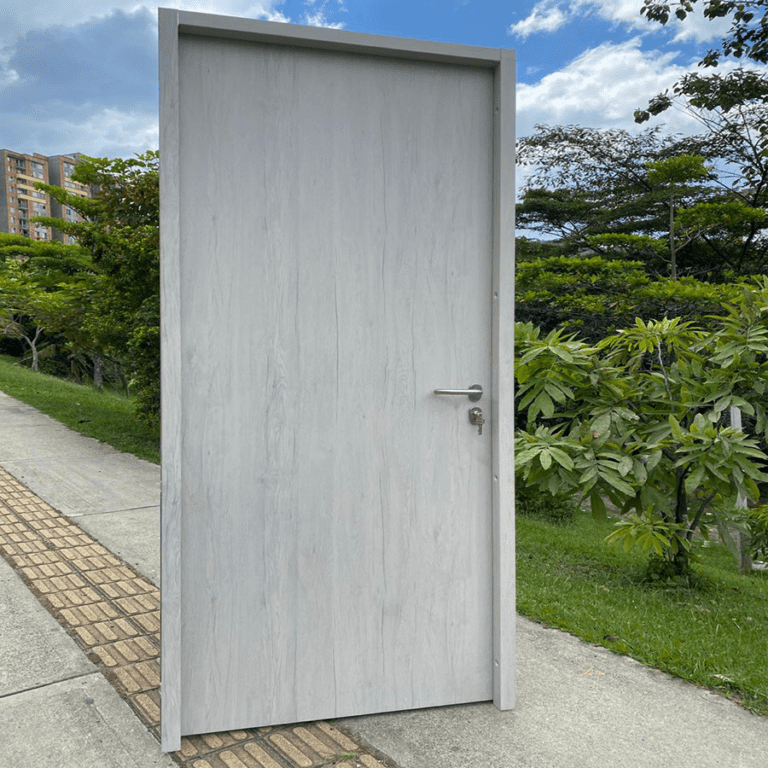

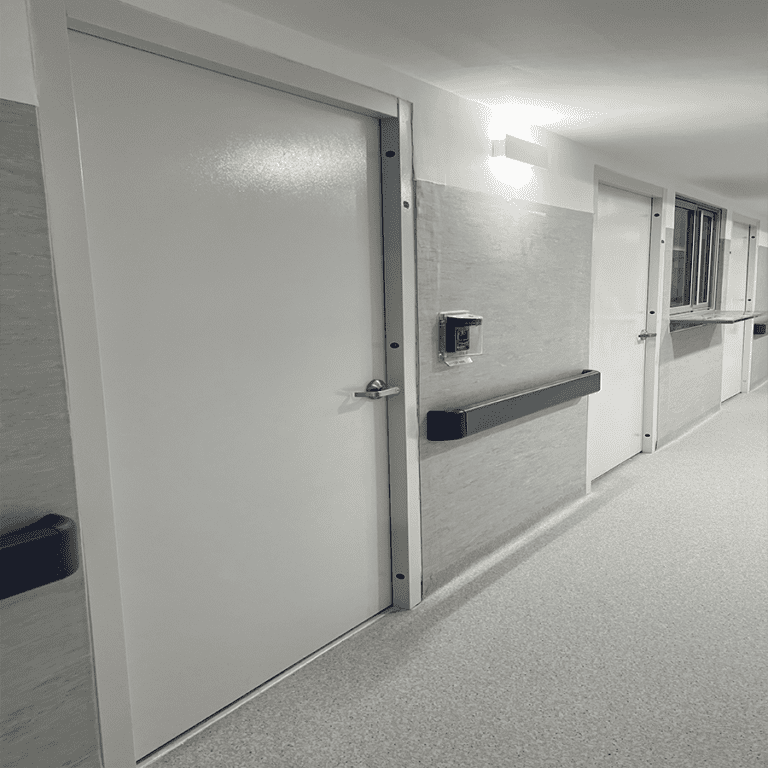

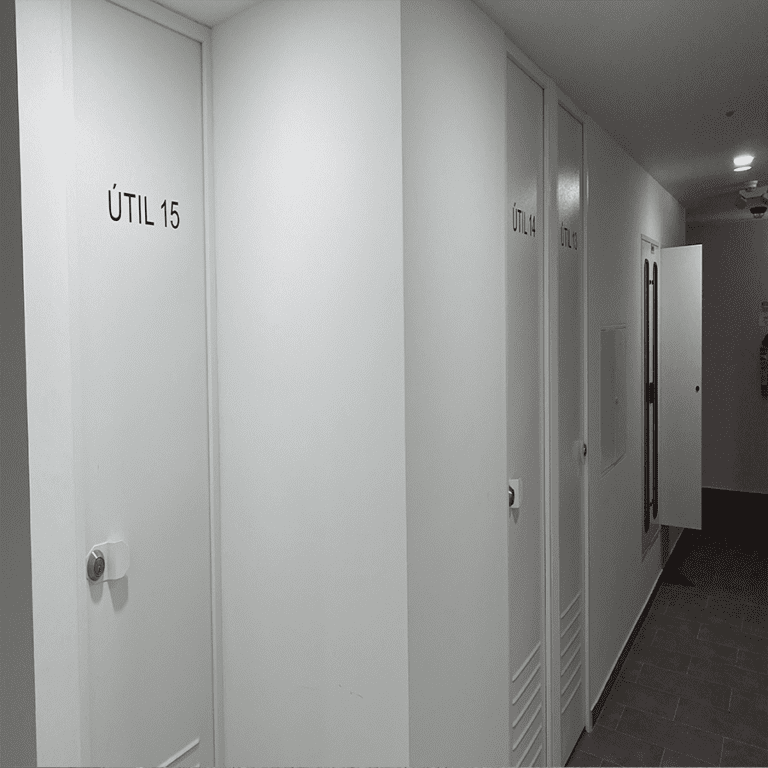

The Door Non-Fire Rated is a versatile solution designed for various applications in residential, commercial and industrial environments. Made of tough, durable materials, this door delivers reliable performance in areas that do not require fire certification. Its functional and adaptable design makes it ideal for warehouses, offices, storage rooms, technical rooms, and other spaces where a robust and practical door is sought. Available in various colours and finishes, the multi-purpose door easily integrates into any architectural environment, combining durability with simple installation and minimal maintenance.
Features
Measures
Accessories
Data Tech
Features
- Sheet made of cold rolled or galvanized steel 20 gauge
- Frame made of cold rolled or galvanized steel 20 gauge
- 4-1/2″ steel hinges with ball bearings
- Honeycomb filling of kraft paper
- Internal reinforcements for door closers and locks in hot rolled steel
- Hinges reinforcements in steel calibre 7
- Upper closing channels in lower 18 gauge steel
- Final finish with epoxy polyester powder paint (not recommended for outdoor), optional
- Polyester powder paint for outdoor use (subject to availability and price variation).
Measures
- Standard dimensions for 1 leaf doors 900, 1000, 1200 x 2100, 2150mm.
- Manufacturing measurements on request up to 1190x2440mm, ask for the required size.
- Standard sizes for 2-leaf doors of 1300, 1500, 2000 x 2100, 2150mm.
- Manufacturing measurements on request up to 2200x2440mm, ask for the required size.
Accessories
- Tubular lock handle type
- Cylindrical knob type lock
- Bolt type lock
- Lock of the inlay
- Closes overlay doors in corrosion-resistant aluminium.
- Closes doors hidden in corrosion-resistant aluminum.
Data Tech
Don’t be left with doubts! Contact us at FcdSupply to find the perfect door or accessory for your need. We are here to help you.
